SMD Magnetic Transducer(External Drive Type) PMT-9027H4
 PMT-9027H4_6234.jpg "SMD Magnetic Transducer(External Drive Type) PMT-9027H4")
- SMD Magnetic Transducer(External Drive Type) PMT-9027H4
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Curve

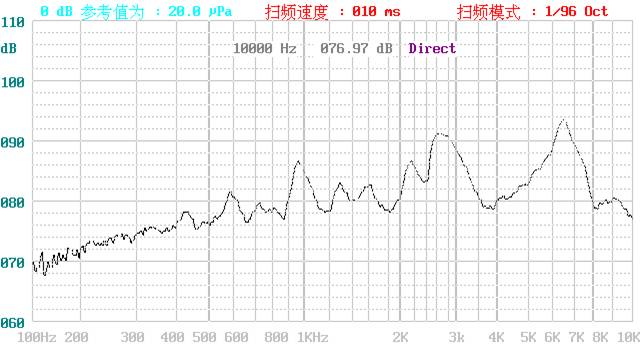

Picture: Frequency Response Curve tested by B&k
Specification
| Type | Unit | PMT-9027H4-1 | PMT-9027H4-1 | PMT-9027H4-1 |
| Rated Voltage | v | 1.5 | 3.6 | 5 |
| Operating Voltage | v | 1~2 | 2.5~4.5 | 4~7 |
| Rated Current(max) | mA | 80 | 70 | 70 |
| Sound output at 10cm | dB | 80 | 85 | 85 |
| Rate Frequency | Hz | 2700 | ||
| Coil Resistance | Ω | 5.5±1 | 16±3 | 32±5 |
| Operating temperature | ℃ | -30~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
| Housing material | LCP | |||
| weight | g | 0.6 | ||
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)
