Piezo Buzzer(Self Drive Type) PP-3020S
 PP-3020S_6182.jpg "Piezo Buzzer(Self Drive Type) PP-3020S")
- Piezo Buzzer(Self Drive Type) PP-3020S
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Piezo Transducer Curve

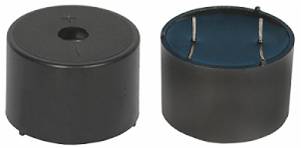

Picture:
Specification
| Type | Unit | PP-3020S |
| Operating Voltage 操作电压 | VDC | 3-25Vp-p |
| Rated Voltage额定电压 | VDC | 12 |
| Rated Current(max) 额定电流 | mA | 15mA （Max）at Rated Voltage |
| Sound output at 10cm输出声压 | dB | Min 90dB（Typ.）at 30mA 12Vp-p, 3.5±0.5khz |
| Rate Frequency 额定频率 | Hz | 3500±500 |
| Operating temperature 操作温度 | ℃ | -20~+60 |
| Storage Temperature 储藏温度 | ℃ | -30~+80 |
| Housing material 外壳材质 | MPPO | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

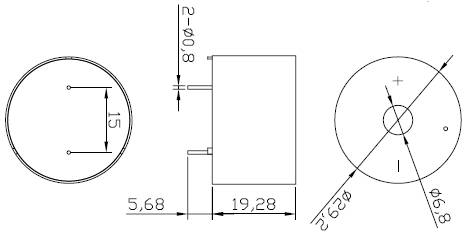

Dimension(Unit: mm) Tolerance: ±0.2mm
