Piezo Buzzer(Self Drive Type) pp-2211srl
 pp-2211srl_6170.jpg "Piezo Buzzer(Self Drive Type) pp-2211srl")
- Piezo Buzzer(Self Drive Type) pp-2211srl
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description

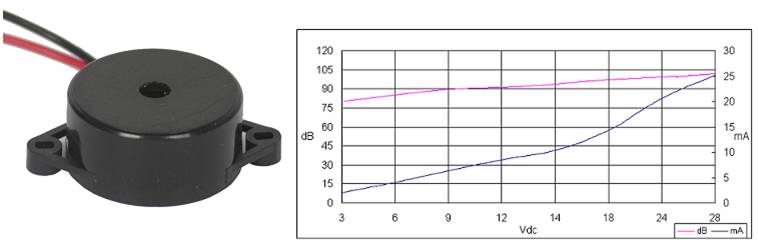

Product Category: Piezo Transducer Curve
Picture:
Specification
| Type | Unit | PP-2211SRL |
| Operating Voltage操作电压 | VDC | Max 20Vp-p |
| Rated Current(max) 额定电流 | mA | 10mA （Max） |
| Sound output at 10cm输出声压 | dB | Min 90dB（Typ.）at 5Vp-p,3.7khz |
| Operating temperature操作温度 | ℃ | -20~+60 |
| Storage Temperature 储藏温度 | ℃ | -30~+70 |
| Weight 重量 | g | 0.5 |
| Housing material 外壳材质 | ABS | |
| Packing Condition 包装情况 | 1400pcs/box | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

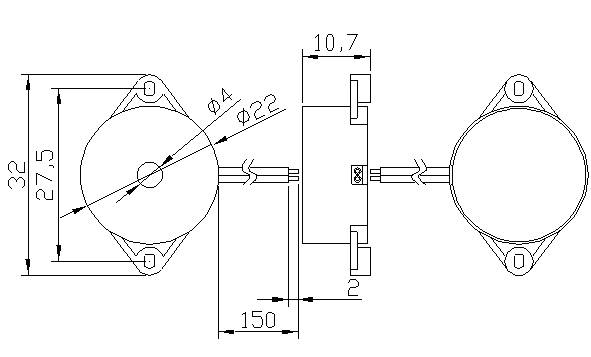

Dimension(Unit: mm) Tolerance: ±0.2mm
