Piezo Buzzer(Self Drive Type) pp-4016s-3p
 pp-4016s-3p_6186.jpg "Piezo Buzzer(Self Drive Type) pp-4016s-3p")
- Piezo Buzzer(Self Drive Type) pp-4016s-3p
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: Piezo Transducer Curve
Picture:
Specification
| Type | Unit | PP-4016S-3P |
| Operating Voltage 操作电压 | VDC | 6-15Vp-p |
| Rated Voltage额定电压 | VDC | 9V |
| Rated Current(max) 额定电流 | mA | 6mA （Max）at Rated Voltage |
| Sound output at 10cm输出声压 | dB | Min 90dB（Typ.）at 30CM 9Vp-p, 3.2±0.5khz |
| Rate Frequency 额定频率 | Hz | 3200±500 |
| Operating temperature 操作温度 | ℃ | -20~+60 |
| Storage Temperature 储藏温度 | ℃ | -30~+80 |
| Housing material 外壳材质 | ABS | |

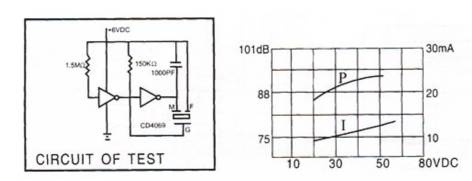

Value Applying at Rated Voltage(resonant frequency, 1/2 duty, square wave)

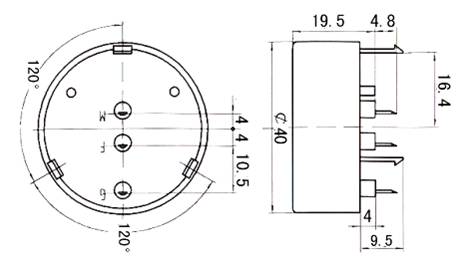

Dimension(Unit: mm) Tolerance: ±0.2mm
