Loudspeaker(round) WSYD78-3
 WSYD78-3_6293.jpg "Loudspeaker(round) WSYD78-3")
- Loudspeaker(round) WSYD78-3
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve
Picture:

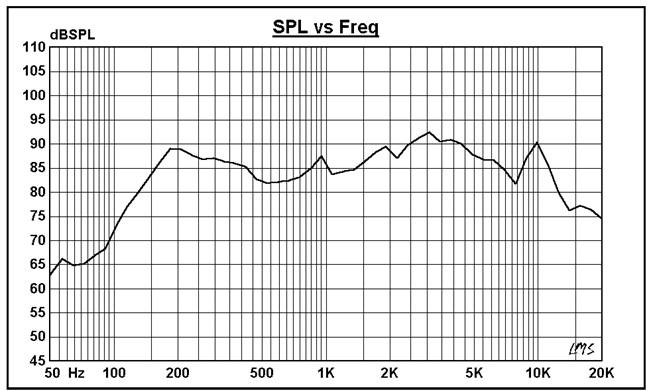

Frequency Response Curve tested by LMS
Specification
| Type 类型 | Unit | WSYD78-3 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 0.5(1.0) |
| Resonant Frequency谐振频率 | Hz | 250±20% |
| Frequency Range 频率范围 | Hz | Fo-10000 |
| Sound Pressure Level 声压级 | dB | 87±3 By LMS at 0.5w 1m |

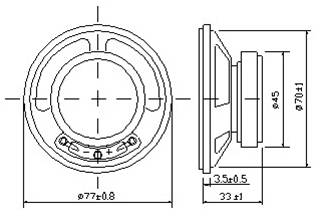

| Size D*H 尺寸 | mm | 77*34 |
| Cone Material振膜材料 |
| Paper cone |
| Frame Material 外壳材料 |
| Metal |
