Loudspeaker(round) WSYD70-2
 WSYD70-2_6291.jpg "Loudspeaker(round) WSYD70-2")
- Loudspeaker(round) WSYD70-2
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve
Picture:

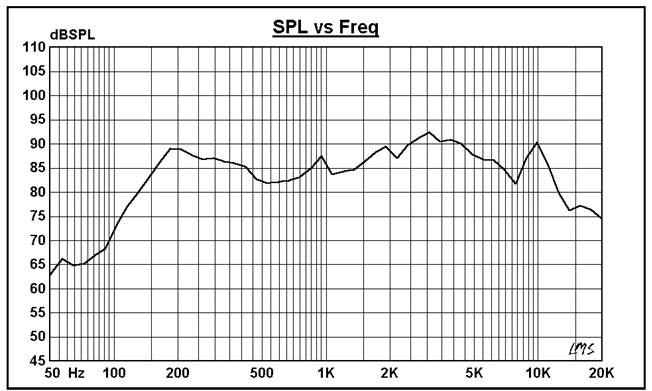

Frequency Response Curve tested by CRY
Specification
| Type 类型 | Unit | WSYD70-2 |
| Rated Impedance 额定阻抗 | Ω | 50±15% |
| Rated (Max) Power 额定(最大)功率 | W | 0.5(1.0) |
| Resonant Frequency谐振频率 | Hz | 400±20% |
| Frequency Range 频率范围 | Hz | Fo-10000 |
| Sound Pressure Level 声压级 | dB | 87±3 By LMS at 0.5w 1m |

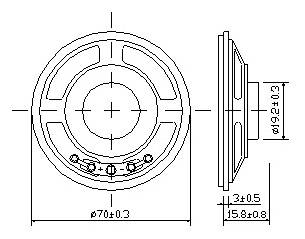

| Size D*H 尺寸 | mm | 70*15.8 |
| Cone Material振膜材料 |
| Al plated Mylar |
| Frame Material 外壳材料 |
| Metal |
