Receiver WS-M13CR002
- Receiver WS-M13CR002
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description

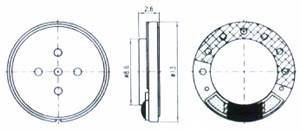

Picture:

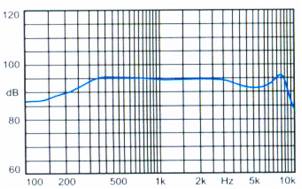

Frequency Response Curve tested by CRY
Specification
Type 类型 | Unit | WS-M13CR002 |
Rated Impedance 额定阻抗 | Ω | 32±15% |
Rated (Max) Power 额定(最大)功率 | W | 0.01（0.02 ) |
DISTORLION 失真率 |
| lessthan5% at 1KHz,10mW |
SENSITIVITY 灵敏度 | dB | 95±3dB SPL Input 100MV at 1KHz 0dB SPL=20 μ Pa |
Size D*H 尺寸 | mm | φ 13*2.6 |
Cone Material振膜材料 |
| Al plated Mylar |
Frame Material 外壳材料 |
| PLASTIC HOUSING |
