    Home > Products > Transducer > Piezo Buzzer(External Drive Type)

    Piezo Buzzer pp-1440H8

      • Piezo Buzzer pp-1440H8
      • Piezo Buzzer pp-1440H8

    Detailed Product Description

    Specification



    Type

    Unit

    PP-1440H8

    Operating Voltage操作电压

    v

    Max 25Vp-p

    Rated Current(max) 额定电流

    mA

    3mA （Max）

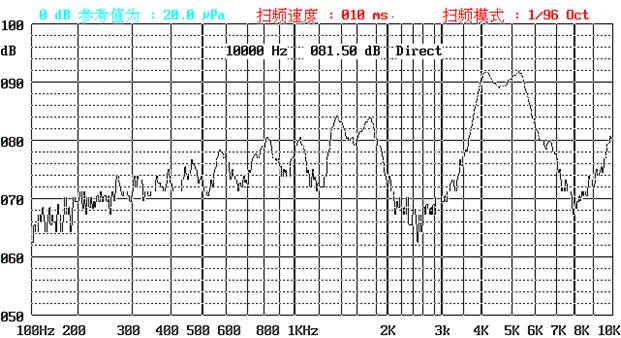

    Sound output at 10cm输出声压

    dB

    Min 80dB（Typ.）at 5Vp-p,4 khz

    Rate Frequency额定频率

    Hz

    4000

    Capacitance电容量

    pF

    13000±30％

    Operating temperature操作温度

    ℃

    -20~+60

    Storage Temperature贮存温度

    ℃

    -30~+70

    Weight重量

    g

    0.5

    Housing material外壳材质

    Mppo

    Packing Condition包装情况

    5000pcs/box

    Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

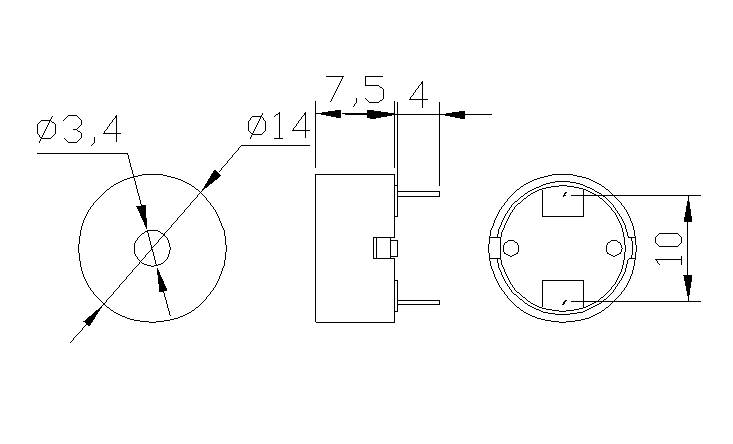

    Dimension(Unit: mm)  Tolerance: ±0.2mm
