Piezo Buzzer(External Drive Type) pp-1440H7.5C
 pp-1440H7.5C_6148.jpg "Piezo Buzzer(External Drive Type) pp-1440H7.5C")
- Piezo Buzzer(External Drive Type) pp-1440H7.5C
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Specification
| Type | Unit | PP-1440H7.5C |
| Operating Voltage操作电压 | v | Max 25Vp-p |
| Rated Current(max) 额定电流 | mA | 3mA （Max） |
| Sound output at 10cm输出声压 | dB | Min 80dB（Typ.）at 5Vp-p,4 khz |
| Rate Frequency额定频率 | Hz | 4000 |
| Capacitance电容量 | pF | 13000±30％ |
| Operating temperature操作温度 | ℃ | -20~+60 |
| Storage Temperature贮存温度 | ℃ | -30~+70 |
| Weight重量 | g | 0.5 |
| Housing material外壳材质 | Mppo | |
| Packing Condition包装情况 | 5000pcs/box | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty, square wave)

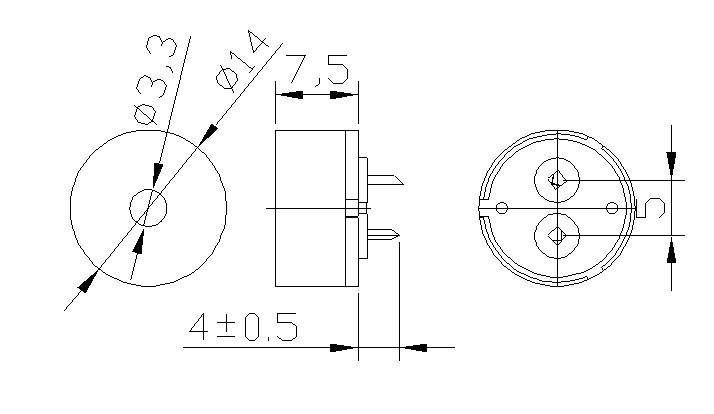

Dimension(Unit: mm) Tolerance: ±0.2mm
