Micro Speaker WS-M18AS001
- Micro Speaker WS-M18AS001
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: MICRO SPEAKER Curve

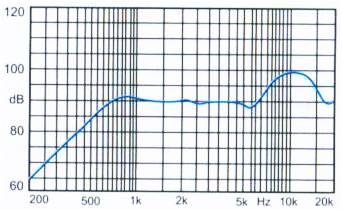

Picture: Frequency Response Curve tested by CRY
Specification
| Type 类型 | Unit | WS-M17AS001 |
| Rated Impedance 额定阻抗 | Ω | 8±15% at 1kHz |
| Rated (Max) Power 额定(最大)功率 | W | 0.5(0.7 ) |
| Resonant Frequency谐振频率 | Hz | 850±100 |
| Frequency Range 频率范围 | Hz | Fo～15KHz |
| Sound Pressure Level 声压级 | dB | 90±3 By CRY at 0.5w 0.1m |

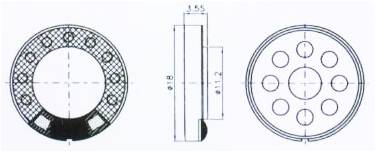

| Size D*H 尺寸 | mm | 18*3.6 |
| Cone Material振膜材料 |
| Al plated Mylar |
| Frame Material 外壳材料 |
| PLASTIC HOUSING |
