Micro Speaker WS-M1510AS002
- Micro Speaker WS-M1510AS002
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: MICRO SPEAKER Curve

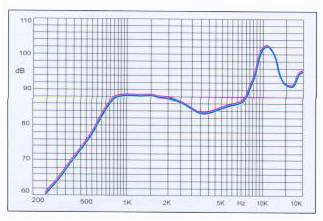

Picture: Frequency Response Curve tested by CRY
Specification
| Type 类型 | Unit | WS-M1510AS002 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 0.5(0.8 ) |
| Resonant Frequency谐振频率 | Hz | 820±20% |
| Frequency Range 频率范围 | Hz | 820～20k |
| Sound Pressure Level 声压级 | dB | 88±3 By CRY at 0.5w 0.1m |
| Size D*H 尺寸 | mm | 15.0*10.0*3.9 |
| Cone Material振膜材料 |
| Al plated Mylar |
| Frame Material 外壳材料 |
| Metal |
