Loudspeaker (rectangle) WSYDT 613-2
 WSYDT 613-2_6308.jpg "Loudspeaker (rectangle) WSYDT 613-2")
- Loudspeaker (rectangle) WSYDT 613-2
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve

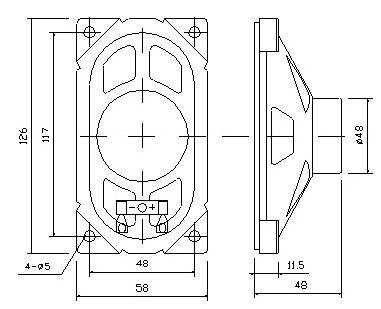

Picture:

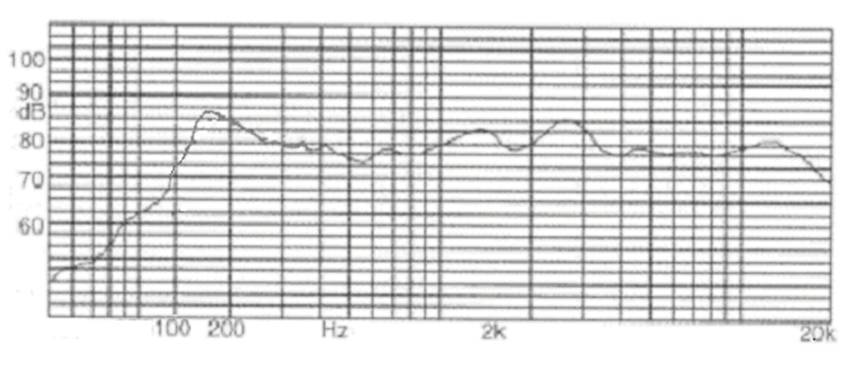

Frequency Response Curve tested by LMS
Specification
| Type 类型 | Unit | WSYDT613-2 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 3.0(5.0 ) |
| Resonant Frequency谐振频率 | Hz | 150±20% |
| Frequency Range 频率范围 | Hz | Fo-20000 |
| Sound Pressure Level 声压级 | dB | 82±3 By CRY at 3w 0.5m |
| Size D*H 尺寸 | mm | 126*58*48 |
| Cone Material振膜材料 |
| Paper cone |
| Frame Material 外壳材料 |
| Metal |
