Loudspeaker (rectangle) WSYDT 511-8
 WSYDT 511-8_6307.jpg "Loudspeaker (rectangle) WSYDT 511-8")
- Loudspeaker (rectangle) WSYDT 511-8
- E-mail:jones_wu@buzzer-china.com
- Share:
Detailed Product Description
Product Category: SPEAKER Curve
Picture:

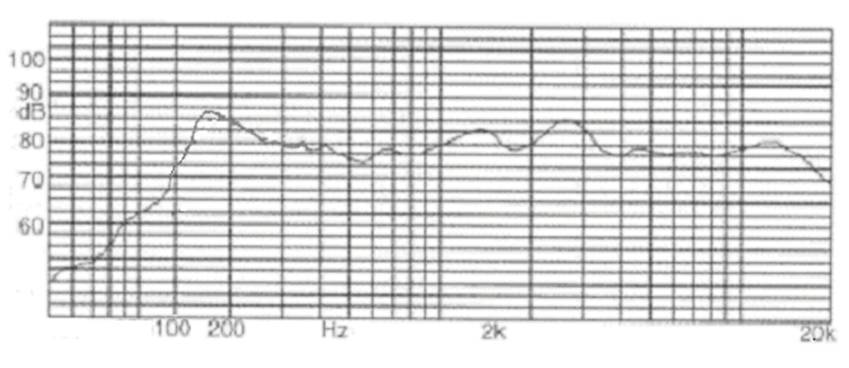

Frequency Response Curve tested by LMS
Specification
| Type 类型 | Unit | WSYDT511-8 |
| Rated Impedance 额定阻抗 | Ω | 8±15% |
| Rated (Max) Power 额定(最大)功率 | W | 5.0(6.0 ) |
| Resonant Frequency谐振频率 | Hz | 180±20% |
| Frequency Range 频率范围 | Hz | Fo-20000 |
| Sound Pressure Level 声压级 | dB | 80±3 By CRY at 5w 0.5m |

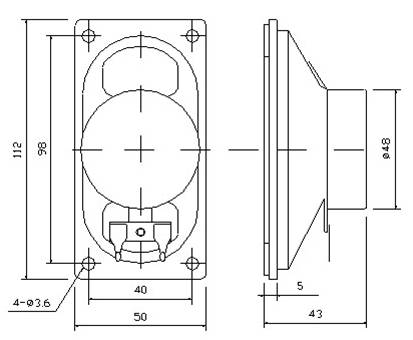

| Size D*H 尺寸 | mm | 50*112*43 |
| Cone Material振膜材料 |
| Paper cone |
| Frame Material 外壳材料 |
| Metal |
