Piezo Buzzer(Self Drive Type) PP-2260P3-16
Have already visited: 210908/29/2013
Product Category: Piezo Transducer
Picture:
Specification
Type | Unit | PP-2260SP3-16 |
Operating Voltage 操作电压 | VDC | 3-25Vp-p |
Rated Voltage额定电压 | VDC | 12 |
Rated Current(max) 额定电流 | mA | 15mA （Max）at Rated Voltage |
Sound output at 10cm输出声压 | dB | Min 90dB（Typ.）at 10mA 12Vp-p, 3.5±0.5khz |
Rate Frequency 额定频率 | Hz | 3500±500 |
Operating temperature 操作温度 | ℃ | -20~+60 |
Storage Temperature 储藏温度 | ℃ | -30~+80 |
Housing material 外壳材质 | MPPO | |
Value Applying at Rated Voltage(resonant frequency, 1/2 duty,square wave)

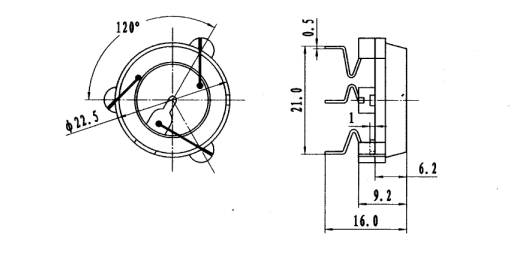

Dimension(Unit: mm) Tolerance: ±0.2mm
